In this vignette we showcase how to use the cyCONDOR ecosystem to predict cell type and cell state without manual annotation of the dataset. This workflow is based on the Astir python package, if you use this workflow please consider citing the Astir manuscript Geuenich et al. Cell Systems, 2021.

In cyCONDOR we use the reticulate package to run python code from R. If you use the cyCONDOR Docker image a conda environment is already configured to run Astir. If you have a local installation of cyCONDOR please visit Astir website to see a tutorial on how to get the tool installed in your system.

Prepare your python environment

Conda load

If you are using cyCONDOR Docker container you can visualize the list of available conda environment.

##    name                           python
## 1  base            /opt/conda/bin/python
## 2 astir /opt/conda/envs/astir/bin/python

Activate Conda

Now you simple need to activate Astir environment to be ready to run this workflow.

use_condaenv(condaenv = "astir")

Load example condor object

For this workflow we use an example dataset which was already analysed with cyCONDOR.

condor <- readRDS("../.test_files/Astir/condor_example_astir.rds")

Run Astir prediction

Astir allows to predict either cell type or cell state, for more details on the package see the official manuscript (Geuenich et al. Cell Systems, 2021).

For the prediction Astir needs a manifest file where the characteristinc of each cell type or cell state are specified.

This manifest file should be save as .yml file with this structure:

head ../.test_files/Astir/marker.yml -n 200
## cell_types:
##   CD4T:
##     - CD3
##     - CD4
##   CD8T:
##     - CD3
##     - CD8
##   NKT:
##     - CD3
##     - CD56
##   NKBright:
##     - CD56
##     - CD16
##   NKDim:
##     - CD56
##   B:
##     - CD19
##   pDCs:
##     - CD123 (IL3RA)
##   Classical_Monocytes:
##     - CD14
##     - HLA-DR
##   cd16_Monocytes:
##     - CD14
##     - HLA-DR
##     - CD16
##
## cell_states:
##   Naive:
##     - CD45RA
##   Temra:
##     - CD45RA
##     - CD197 (CCR7)
##   TCM:
##     - CD197 (CCR7)

You can now run the two functions for the prediction of the cell type (run_astir_celltype) and cell state (run_astir_cellstate).

Run Astrir to predict cell type

This function predict the cell type based on the marker selection specified in the manifest file. The output of this function is saved within the condor object under condor$astir$Astir_cell_type_[data_slot]. Additionally some QC data is saved in the analysis_path directory as .csv

condor <- runAstir_celltype(fcd = condor,
                            data_slot = "orig",
                            analysis_path = "../.test_files/Astir/",
                            manifest_name = "marker.yml",
                            max_epochs = 1000,
                            learning_rate = 0.002,
                            initial_epochs = 3)
## cell_type
##                   B      cd16_Monocytes                CD4T                CD8T
##                1195                2171               17604               12338
## Classical_Monocytes            NKBright               NKDim                 NKT
##               13989                6589                 669                1618
##               Other                pDCs             Unknown
##                 657                 525                1694

Run Astrir to predict cell state

Similarly to the previous function the runAstir_cellstates function calculates a score for each cell state declared in the manifest file. The results are saved in the condor object in the slot condor$astir$Astir_cell_state_[data_slot]. Also in this case additional information are stored in the analysis_path directory in .csv format.

condor <- runAstir_cellstates(fcd = condor,
                              data_slot = "orig",
                              analysis_path = "../.test_files/Astir/",
                              manifest_name = "marker.yml",
                              max_epochs = 1000,
                              learning_rate = 0.002,
                              initial_epochs = 3)

Explore Astrir output

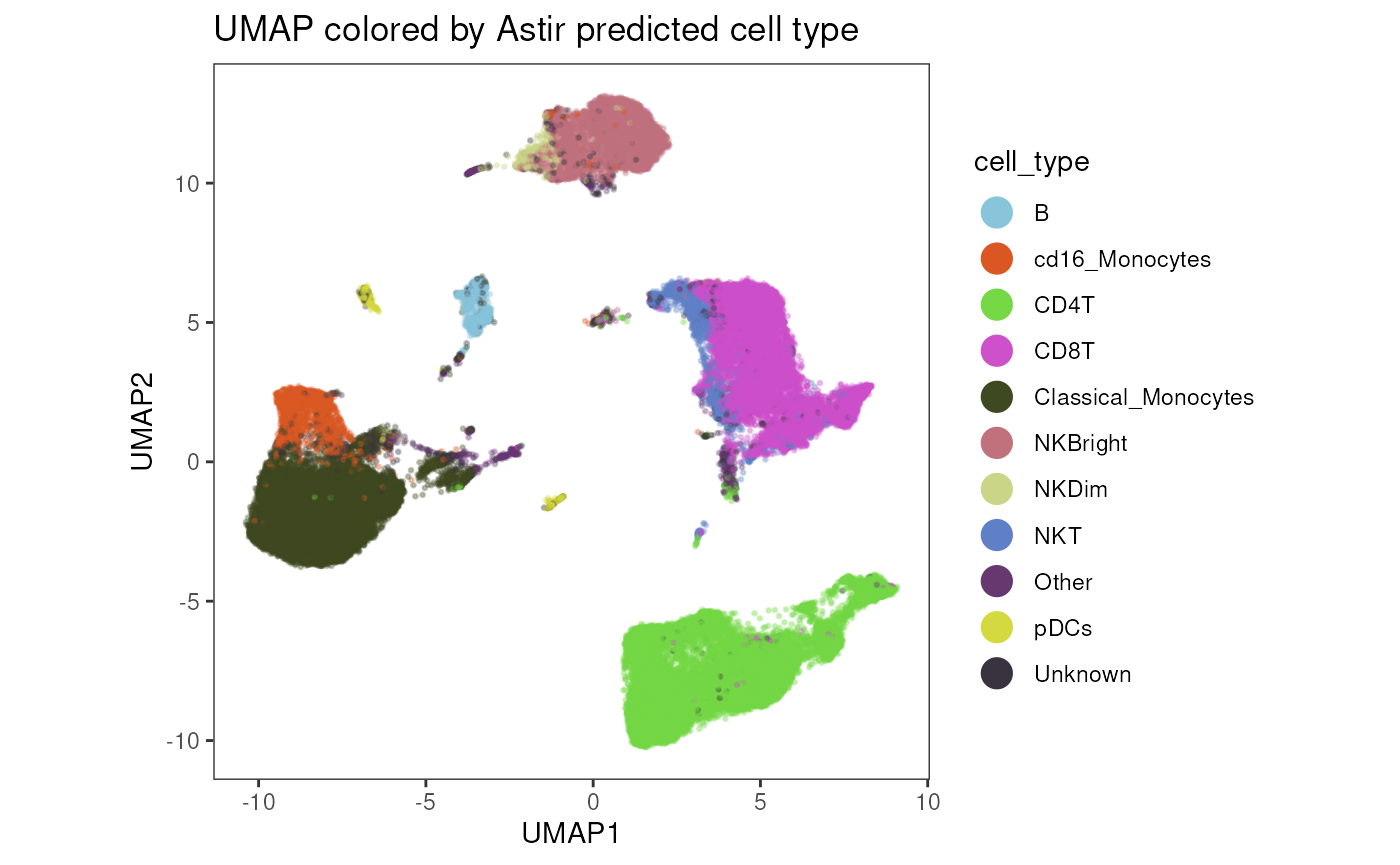

Cell type predictiom

head(read.csv("../.test_files/Astir/cell_types.csv"))
##            X           cell_type
## 1 ID10.fcs_1 Classical_Monocytes
## 2 ID10.fcs_2                   B
## 3 ID10.fcs_3                CD8T
## 4 ID10.fcs_4                CD8T
## 5 ID10.fcs_5 Classical_Monocytes
## 6 ID10.fcs_6                 NKT
head(read.csv("../.test_files/Astir/probabilities.csv"))
##            X         CD4T         CD8T          NKT     NKBright        NKDim
## 1 ID10.fcs_1 1.367795e-07 1.040441e-06 2.237096e-08 2.666305e-08 2.577234e-09
## 2 ID10.fcs_2 1.324877e-09 1.897896e-08 8.172032e-09 1.478764e-06 8.104055e-07
## 3 ID10.fcs_3 7.930615e-07 9.996531e-01 3.249013e-04 2.514041e-11 9.783583e-07
## 4 ID10.fcs_4 4.006673e-06 9.991856e-01 8.099304e-04 1.315141e-08 1.246818e-08
## 5 ID10.fcs_5 4.936036e-08 4.064938e-08 3.321160e-09 1.654602e-09 1.129317e-08
## 6 ID10.fcs_6 4.400705e-04 1.701123e-03 9.978535e-01 6.876026e-07 1.317771e-09
##              B         pDCs Classical_Monocytes cd16_Monocytes        Other
## 1 7.560338e-08 3.908119e-08        7.289595e-01   2.710360e-01 3.219714e-06
## 2 9.988234e-01 9.412180e-08        4.065692e-04   4.887747e-04 2.788651e-04
## 3 4.291974e-08 2.102051e-08        4.663446e-10   9.128537e-10 2.016069e-05
## 4 3.226020e-09 9.898312e-10        5.188650e-09   6.706455e-09 4.622255e-07
## 5 3.198307e-08 3.116859e-06        9.999630e-01   2.644898e-05 7.325300e-06
## 6 1.727692e-09 2.275862e-09        3.762259e-10   4.302245e-07 4.208238e-06

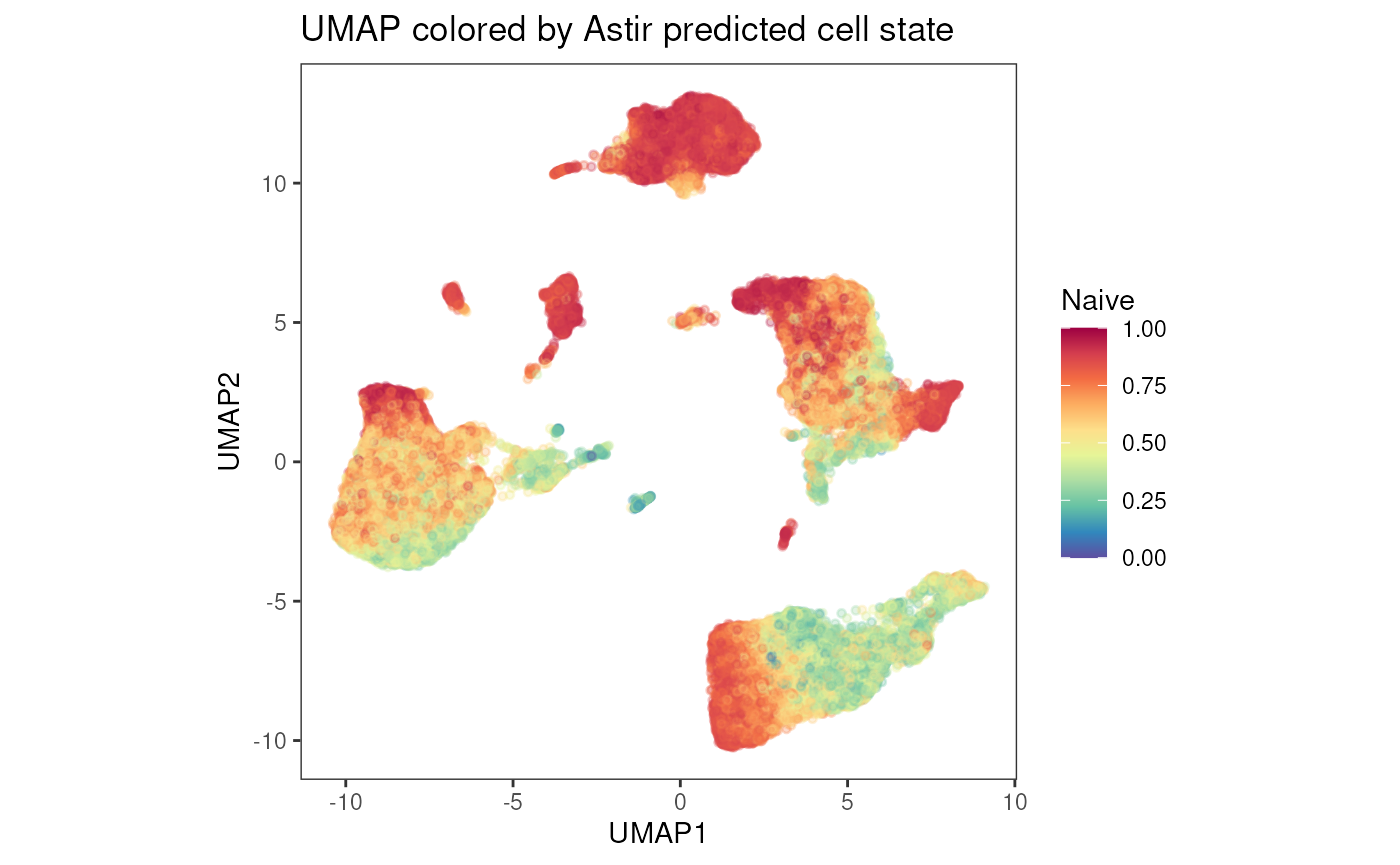

Cell State

head(read.csv("../.test_files/Astir/cell_states.csv"))
##            X     Naive     Temra       TCM
## 1 ID10.fcs_1 0.6374948 0.5499843 0.5300270
## 2 ID10.fcs_2 0.9017660 0.4957597 0.4049620
## 3 ID10.fcs_3 0.6665408 0.5347504 0.5063865
## 4 ID10.fcs_4 0.8504398 0.3773496 0.3034684
## 5 ID10.fcs_5 0.7882705 0.3863390 0.3289931
## 6 ID10.fcs_6 0.8909467 0.4584617 0.3715501
